160x45x55mm ABS polycarbonate wateproof plastic enclosure plastic housings

160x45x55mm ABS polycarbonate wateproof plastic enclosure plastic housings

Brand Name : Anbox
Model Number : 160A-1
Certification : CE
Place of Origin : China
MOQ : 10pcs
Price : $2~$4
Payment Terms : T/T, Western Union, Paypal
Supply Ability : 5000pcs/day
Delivery Time : 7 days
Packaging Details : pp bag/box
Contact Now

160x45x55mm ABS polycarbonate wateproof plastic enclosure plastic housings


Features:


  1. Designed to IP65 of IEC60529.
  2. Silicone rubber gasket makes this ideal for outdoor use in a wide range of adverse conditions
  3. Captive steel screws thread into brass inserts for cover on/cover off applications
  4. Plastic PCB mounting bosses are standard
  5. Durable, high impact ABS, PC raw material
  6. The Min.average wall thickness is 3mm
  7. Gray cover and transparent cover are available
  8. Assembly includes base, gasket, cover, and 4 steel enclosure screws
  9. Custom requirements are available.
  10. Accept OEM order as per your design.

Specifications:


Model No.160A-1
External Size160*45*55mm
Net weight108g
Protection LevelIP65
MaterialABS, PC, Flame retardant, UV stabilized
Flame ratingUL 94-HB, UL94-V2, UL94-V0, UL94-5VA
Temperature Range-20°C~80°C(ABS), -40°C~100°C (PC)
Impact resistantIK07(ABS), IK08(PC)

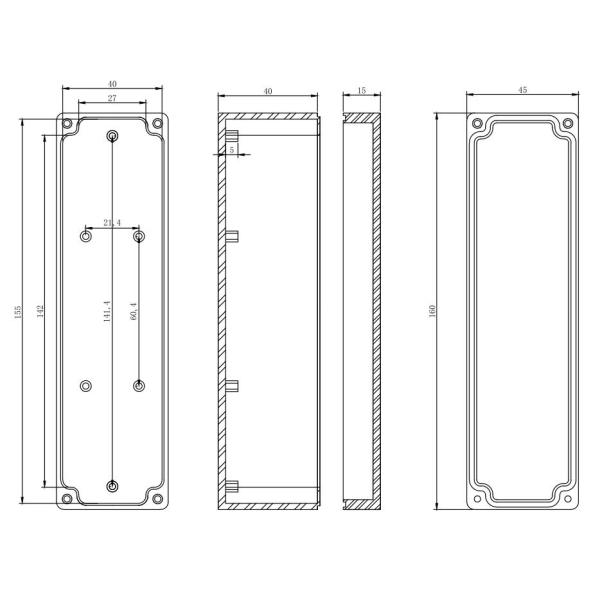

Drawing reference
